Fractional CO₂ Laser
SMAXEL™
Redefining CO₂ laser technology.
SMAXEL delivers precisely targeted 100-micrometer columns of laser energy, customizable to the indication in front of you. Smart Pulse technology, five pulse modes, and a low-pain fractional setting promote effective tissue restoration while minimizing downtime — a single console for aesthetic dermatology, minor surgery, gynecology, dentistry, and ENT.
“SMAXEL is my go-to solution for treating acne scars, hyperpigmentation, fine lines, and wrinkles. It also performs exceptionally well in minor surgical procedures such as mole, wart, and skin tag removal.”
Indications
What it treats.
- Skin resurfacing, acne scars, wrinkles & stretch marks
- Corns, warts & syringomas
- Excision, tumor removal & hemorrhoids
- Atrophic vaginitis & incontinence
- Dental implants, root canal & hypersensitivity
- Snoring & allergic rhinitis
In the menu
Resurfacing & scars
Texture, acne scars, wrinkles, stretch marks.
In the menu
Rejuvenation
Tone, glow, collagen, no single-modality bet.
In the menu
Acne & recovery
Active acne, scars, and the days after energy.
In the menu
Surgical & specialty
ENT, dental, gyn, and the cases lasers were built for.

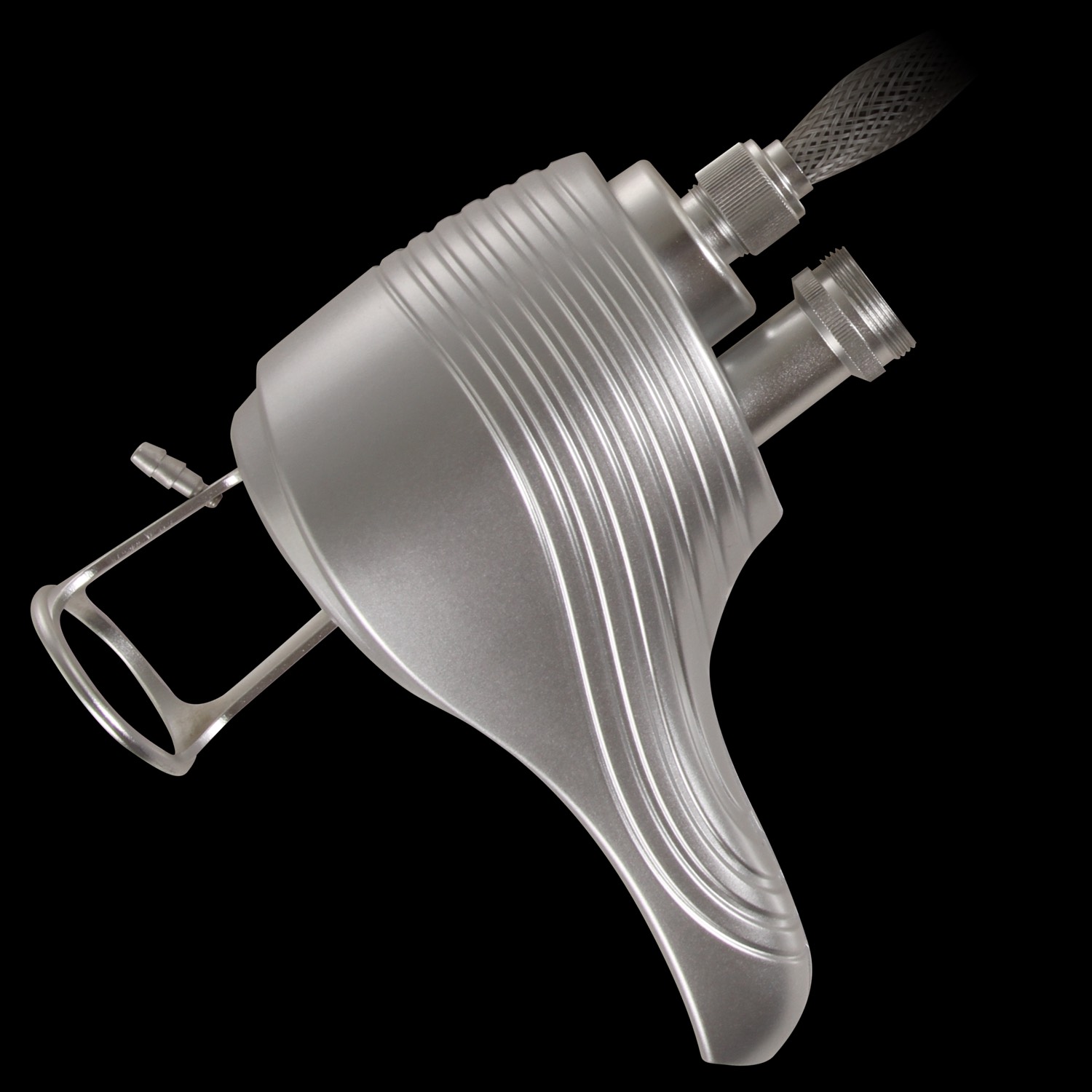

Handpiece
Microbeam scanner
A galvanic motor drives precise 100-micrometer columns across a 2×2 to 20×20 mm field. Density from 9 to 4,489 dots, depth in five steps — energy that matches the indication, not a single forced protocol.
Engineering notes
Smart Pulse
Ultra, super, super-continuous, continuous-wave, and normal pulse — density from 9 to 4,489 dots so energy matches the indication rather than forcing a single protocol.
Low Pain Mode
Lower-energy fractional pulses minimize discomfort on sensitive skin without giving up the 100-micrometer column architecture.
No device consumables
A smarter investment. Operating cost stays in the practice instead of a branded-tip subscription.
Beyond rejuvenation
50 mm and 100 mm surgical handpieces, optional automatic LVR, and dental/ENT tips extend the console into gynecology, oral surgery, and otorhinolaryngology.
Why SMAXEL
Precision without the downtime.
Reduce downtime
Controlled energy delivery and a smart scanning system shorten recovery versus deeper ablative CO₂.
Five pulse modes
Ultra Pulse, Super Pulse, Super Continuous, Continuous Wave, and Normal Pulse — plus Smart Protocol for general and dental surgery.
Low Pain Mode
Lower-energy laser pulses minimize discomfort, ideal for sensitive skin and patients who will not tolerate a fully ablative pass.
Beam patterns & shapes
Three beam patterns and four scan shapes let a physician draw energy to the anatomy instead of the other way around.
No consumables
Smarter investment. No device consumables — the cost of ownership stays in the practice.
Specifications
Handpieces
- Microbeam — galvanic motor (fractional)
- 50 mm surgical (standard)
- 100 mm surgical (standard)
- Automatic LVR (optional)
- Dental / ENT (optional)
- Laser medium
- CO₂ (glass tube)
- Wavelength
- 10,600 nm
- Power
- 1–40 W
- Guide / aiming beam
- Diode 650 nm, < 5 mW
- Cooling
- Water
- Dimensions
- 440 × 480 × 1,055 mm
- Weight
- 52 kg
- Operation modes
- CW · Normal · Super · Super Continuous · Ultra Pulse · Smart Protocol
- Pulse duration
- Ultra 90–900 µs · Super 1.0–4.0 ms · Normal 5–20 ms · CW 2–30 ms
- Beam size
- 2×2 mm – 20×20 mm
- Density
- 1–23 steps · 9–4,489 dots
- Beam pattern
- Array, grid, random
- Beam shape
- Square, triangle, octagon, circle
- Depth level
- 1–5 steps
- Fractional modes
- Fractional · Low Pain Fractional
